X2AEECNANF-24.000000,TAITIENBB贝博艾弗森官方网站,±30ppm晶体,8pF无源BB贝博艾弗森官方网站,3225无源谐振器,泰艺BB贝博艾弗森官方网站

当前位置：首页 » 台产BB贝博艾弗森官方网站 » TAITIENBB贝博艾弗森官方网站 » X2AEECNANF-24.000000,TAITIENBB贝博艾弗森官方网站,±30ppm晶体,8pF无源BB贝博艾弗森官方网站,3225无源谐振器,泰艺BB贝博艾弗森官方网站

prevnext

X2AEECNANF-24.000000,TAITIENBB贝博艾弗森官方网站,±30ppm晶体,8pF无源BB贝博艾弗森官方网站,3225无源谐振器,泰艺BB贝博艾弗森官方网站

频率：24MHz

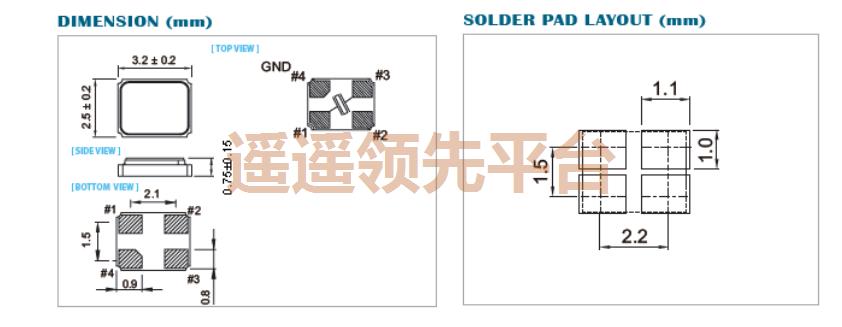

尺寸：3.20mm x 2.50mm

Part Series 型号	X2
Original model 原厂编码	X2AEECNANF-24.000000
Product Category 产品系列	MHzBB贝博艾弗森官方网站
Manufacturer 品牌	Taitien
Frequency 频率	24MHz
Package Size 包装尺寸	3.20mm x 2.50mm
Load capacitance 负载电容	8pF
frequency tolerance 频率容差	±30ppm

订购热线：13380314981

X2AEECNANF-24.000000,TAITIENBB贝博艾弗森官方网站,±30ppm晶体,8pF无源BB贝博艾弗森官方网站,3225无源谐振器,泰艺BB贝博艾弗森官方网站详细参数

Part Series 型号	X2
Original model 原厂编码	X2AEECNANF-24.000000
Product Category 产品系列	MHz Crystal
Manufacturer 品牌	Taitien
Frequency 频率	24MHz
Package Size 包装尺寸	3.20mm x 2.50mm
Load capacitance 负载电容	8pF
frequency tolerance 频率容差	±30ppm
Termination 脚位	4 Pad
Package Height 高度	0.90mm
Package Type 封装类型	4-SMD
Packaging 包装	Tape and Reel
Mounting Style 安装方式	Surface Mount

X2AEECNANF-24.000000,TAITIENBB贝博艾弗森官方网站,±30ppm晶体,8pF无源BB贝博艾弗森官方网站,3225无源谐振器,泰艺BB贝博艾弗森官方网站相关产品

X2AEECNANF-24.000000	Taitien	X2	MHz Crystal	24MHz	-20°C ~ 70°C	4-SMD, No Lead
X2AGHINANF-48.000000	Taitien	X2	MHz Crystal	48MHz	-10°C ~ 60°C	4-SMD, No Lead
X2CGGCSANF-25.000000	Taitien	X2	MHz Crystal	25MHz	-20°C ~ 70°C	4-SMD, No Lead
X2CGGCSANF-30.000000	Taitien	X2	MHz Crystal	30MHz	-20°C ~ 70°C	4-SMD, No Lead
X2DCCCNANF-25.000000	Taitien	X2	MHz Crystal	25MHz	-20°C ~ 70°C	4-SMD, No Lead
X2DEECNANF-24.000000	Taitien	X2	MHz Crystal	24MHz	-20°C ~ 70°C	4-SMD, No Lead
X2DEECNANF-25.000000	Taitien	X2	MHz Crystal	25MHz	-20°C ~ 70°C	4-SMD, No Lead
X2FCCLNANF-16.000000	Taitien	X2	MHz Crystal	16MHz	-40°C ~ 85°C	4-SMD, No Lead
X2FCCLNANF-25.000000	Taitien	X2	MHz Crystal	25MHz	-40°C ~ 85°C	4-SMD, No Lead
X2GCELNANF-24.000000	Taitien	X2	MHz Crystal	24MHz	-40°C ~ 85°C	4-SMD, No Lead
X2GCELNANF-25.000000	Taitien	X2	MHz Crystal	25MHz	-40°C ~ 85°C	4-SMD, No Lead
X2GEECNANF-24.000000	Taitien	X2	MHz Crystal	24MHz	-20°C ~ 70°C	4-SMD, No Lead
X2GEGLNANF-24.000000	Taitien	X2	MHz Crystal	24MHz	-40°C ~ 85°C	4-SMD, No Lead
X2GGGLNANF-12.000000	Taitien	X2	MHz Crystal	12MHz	-40°C ~ 85°C	4-SMD, No Lead
XSCEECNANF-8.000000	Taitien	XS	MHz Crystal	8MHz	-20°C ~ 70°C	2-SMD, No Lead
XSCEGCNANF-10.000000	Taitien	XS	MHz Crystal	10MHz	-20°C ~ 70°C	2-SMD, No Lead
XSCGGCNANF-24.576000	Taitien	XS	MHz Crystal	24.576MHz	-20°C ~ 70°C	2-SMD, No Lead
XSDEECNANF-25.000000	Taitien	XS	MHz Crystal	25MHz	-20°C ~ 70°C	2-SMD, No Lead
XSDEELNANF-12.000000	Taitien	XS	MHz Crystal	12MHz	-40°C ~ 85°C	2-SMD, No Lead
XSDEELNANF-13.560000	Taitien	XS	MHz Crystal	13.56MHz	-40°C ~ 85°C	2-SMD, No Lead
XSDEELNANF-25.000000	Taitien	XS	MHz Crystal	25MHz	-40°C ~ 85°C	2-SMD, No Lead
XSDEGCNANF-16.000000	Taitien	XS	MHz Crystal	16MHz	-20°C ~ 70°C	2-SMD, No Lead
XSFGGLNANF-20.000000	Taitien	XS	MHz Crystal	20MHz	-40°C ~ 85°C	2-SMD, No Lead
XSGEECNANF-16.000000	Taitien	XS	MHz Crystal	16MHz	-20°C ~ 70°C	2-SMD, No Lead
XSGEELNANF-25.000000	Taitien	XS	MHz Crystal	25MHz	-40°C ~ 85°C	2-SMD, No Lead
XSGEGLNANF-13.000000	Taitien	XS	MHz Crystal	13MHz	-40°C ~ 85°C	2-SMD, No Lead
XSHEECNANF-25.000000	Taitien	XS	MHz Crystal	25MHz	-20°C ~ 70°C	2-SMD, No Lead
XSHEELNANF-25.000000	Taitien	XS	MHz Crystal	25MHz	-40°C ~ 85°C	2-SMD, No Lead
XSHGGLNANF-11.059200	Taitien	XS	MHz Crystal	11.0592MHz	-40°C ~ 85°C	2-SMD, No Lead
XSHGGLNANF-12.000000	Taitien	XS	MHz Crystal	12MHz	-40°C ~ 85°C	2-SMD, No Lead
XSHGGLNANF-16.000000	Taitien	XS	MHz Crystal	16MHz	-40°C ~ 85°C	2-SMD, No Lead
XSHGGLNANF-24.000000	Taitien	XS	MHz Crystal	24MHz	-40°C ~ 85°C	2-SMD, No Lead
XSDEELAANF-12.000000	Taitien	XS	MHz Crystal	12MHz	-40°C ~ 85°C	2-SMD, No Lead
XSDEELAANF-13.560000	Taitien	XS	MHz Crystal	13.56MHz	-40°C ~ 85°C	2-SMD, No Lead
XSGEECAANF-16.000000	Taitien	XS	MHz Crystal	16MHz	-20°C ~ 70°C	2-SMD, No Lead
XSGEELAANF-25.000000	Taitien	XS	MHz Crystal	25MHz	-40°C ~ 85°C	2-SMD, No Lead
XSHEECAANF-25.000000	Taitien	XS	MHz Crystal	25MHz	-20°C ~ 70°C	2-SMD, No Lead
XSHEELAANF-25.000000	Taitien	XS	MHz Crystal	25MHz	-40°C ~ 85°C	2-SMD, No Lead
XVCCECNANF-25.000000	Taitien	XV	MHz Crystal	25MHz	-20°C ~ 70°C	4-SMD, No Lead
XSGCCLNANF-25.000000	Taitien	XS	MHz Crystal	25MHz	-40°C ~ 85°C	2-SMD, No Lead
XSGCECNANF-8.000000	Taitien	XS	MHz Crystal	8MHz	-20°C ~ 70°C	2-SMD, No Lead
XSGCELNANF-8.000000	Taitien	XS	MHz Crystal	8MHz	-40°C ~ 85°C	2-SMD, No Lead
XSHCCLNANF-25.000000	Taitien	XS	MHz Crystal	25MHz	-20°C ~ 70°C	2-SMD, No Lead
